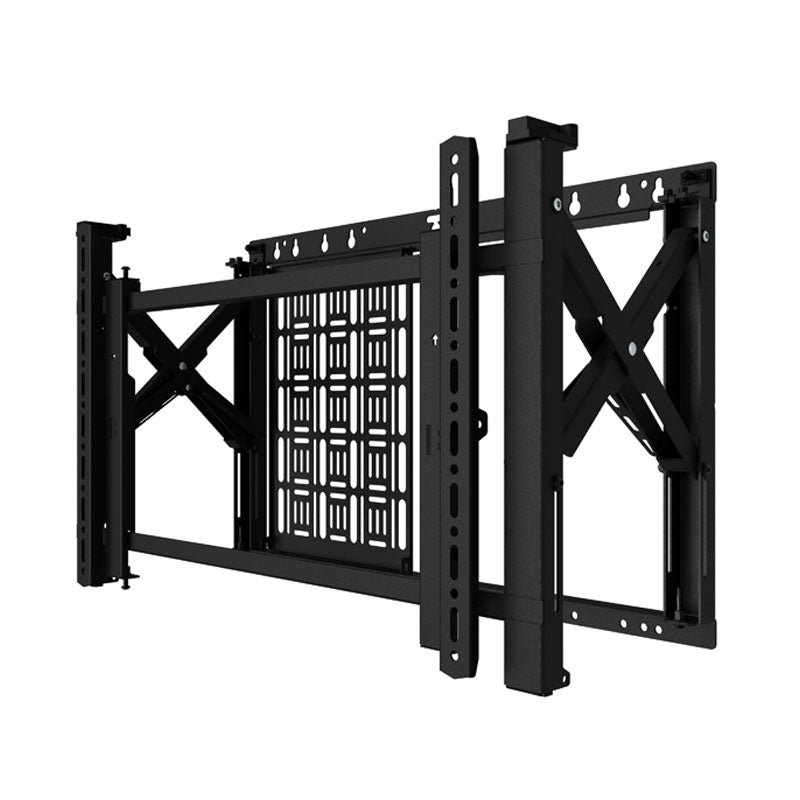

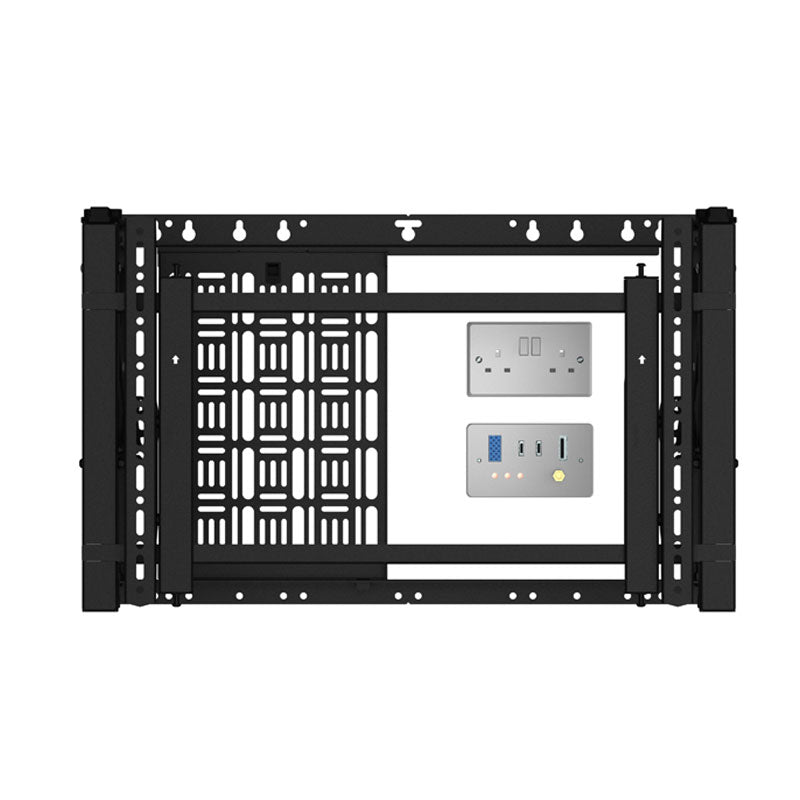

B-Tech XL Pull-Out TV Wall Mount (AV Storage Tray) BT7896/B

B-Tech XL Pull-Out TV Wall Mount with AV Storage Tray BT7896/B features:

• Fits screens up to 75" and 154 lbs. (70kg) with mounting patterns up to 600 x 400mm

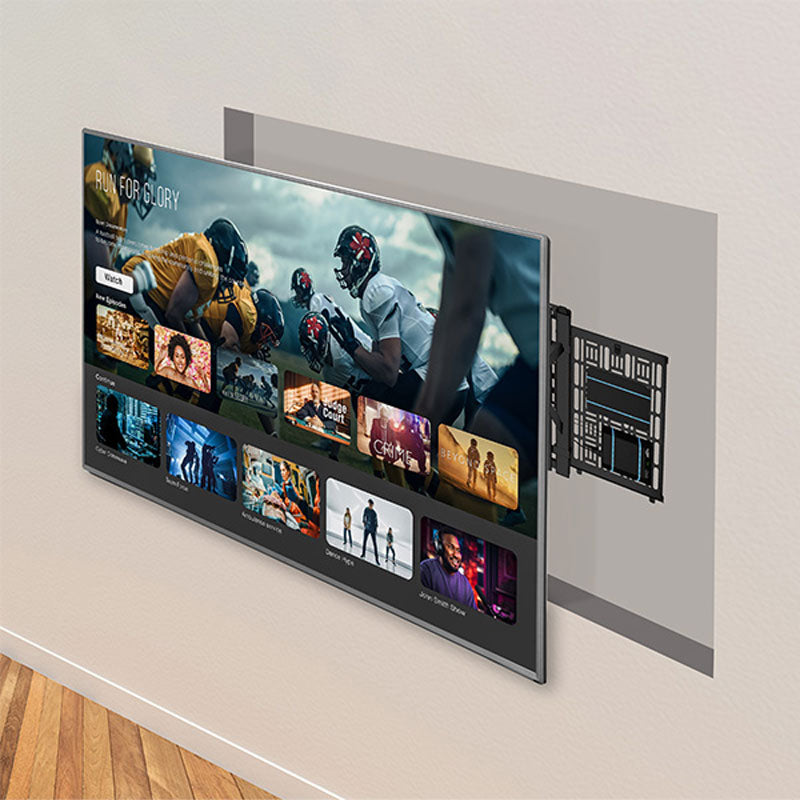

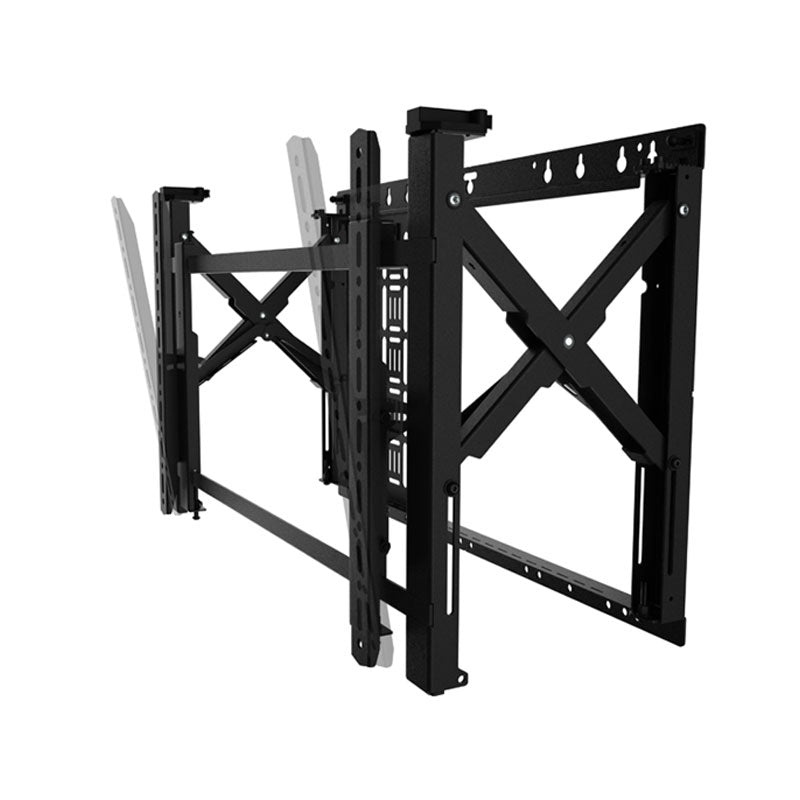

• Push-to-release arms provide simple service access without screen removal

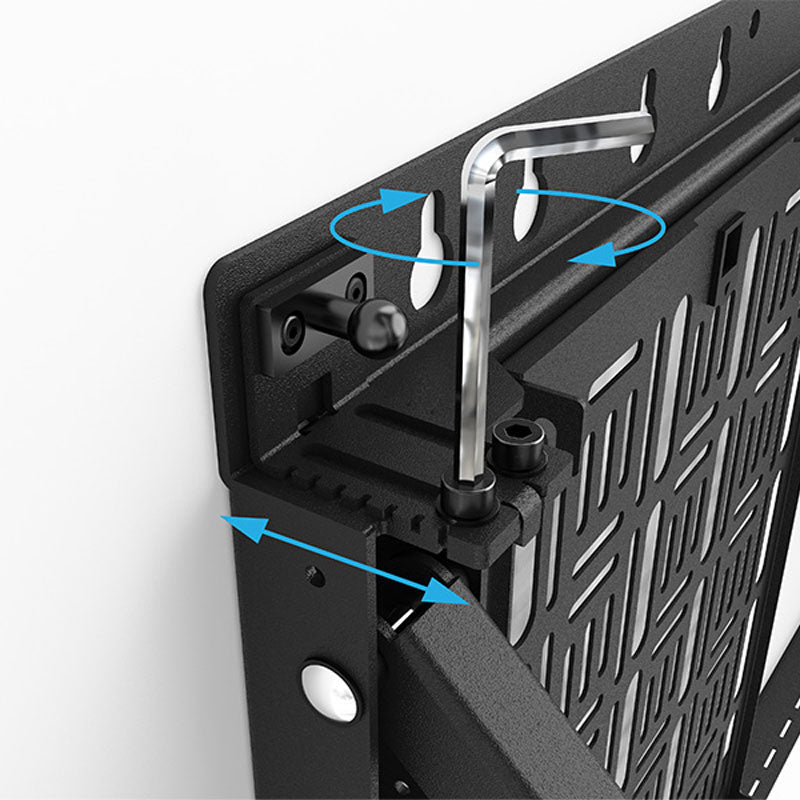

• Lockable depth adjustment ensures a precise fit in recesses of different sizes
• Integrated AV tray can be repositioned to the side to of the mount to avoid obstructions
  (Max load of tray increases to 22 lbs. or 10kg)

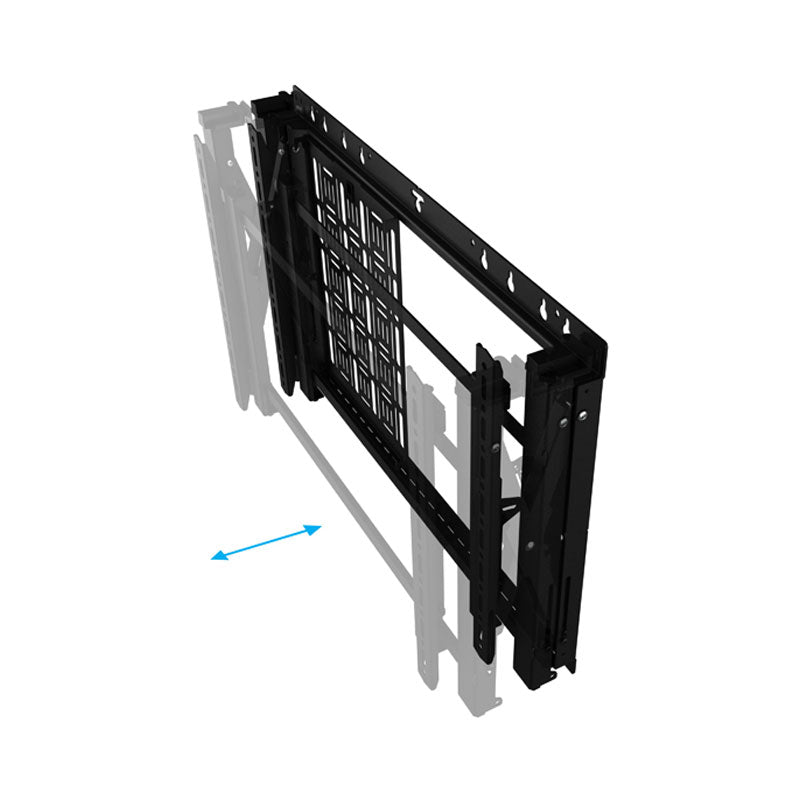

• Pull-out function ideal for recess mounting

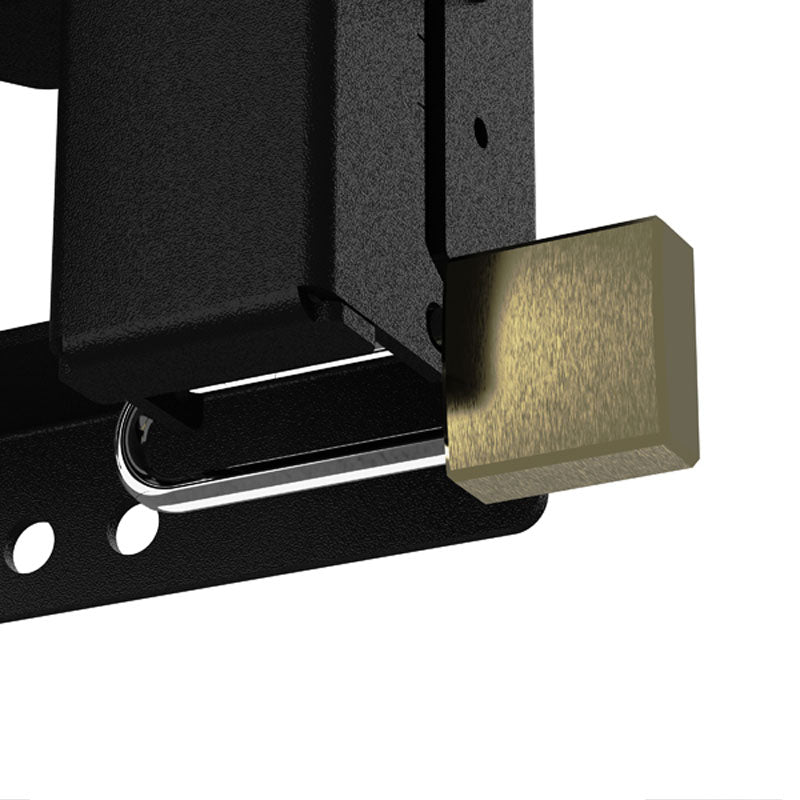

• Lockable in the closed position and compatible with a padlock for added security (padlock not included)
• Quick release AV tray (when mounted inside the wall plate)
• Additional Storage Tray (BT7896-Tray) available separately

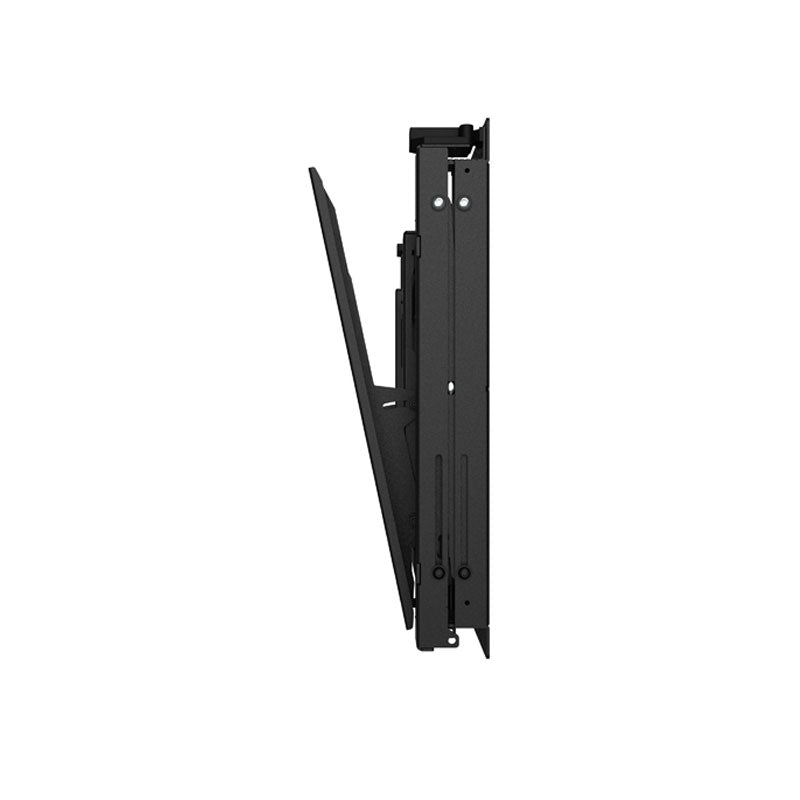

• Adjustable depth, tilt, and swivel for precise screen positioning
• Keyhole wall mounting for fast, hook-on installation

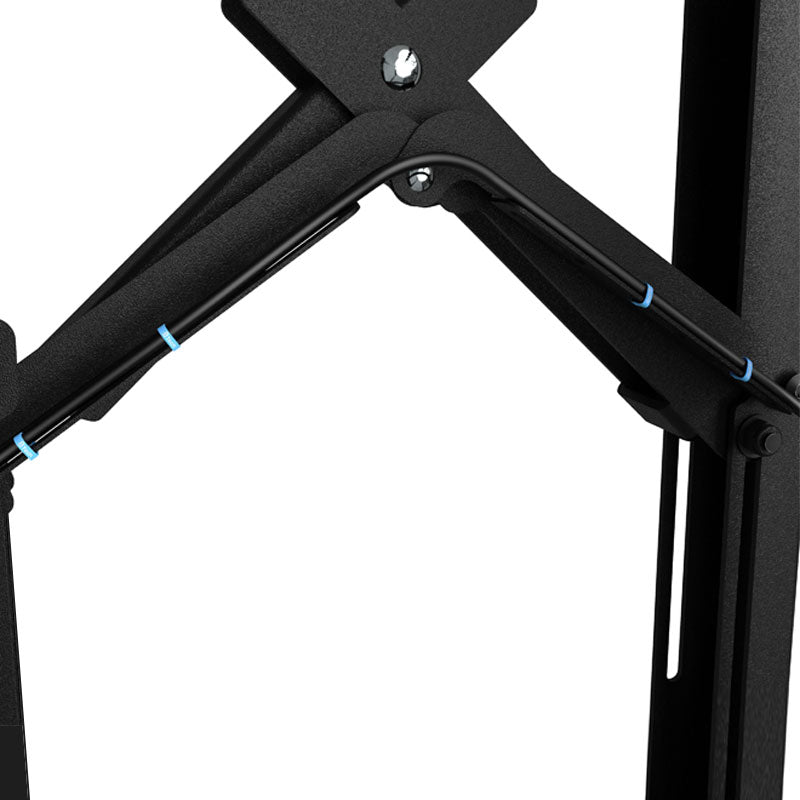

• Includes cable straps and routing for tidy cable management
• Drilling template included
• 100% plastic-free packaging
• Depth adjustment: +73.5mm
• Distance from wall closed flat: Min: 3.58" (91mm) - Max: 6.46" (164mm)
• Distance from wall closed with full-tilt: Min: 6.34" (161mm) - Max: 9.21" (234mm)
• Distance from wall popped out: 11.85" (301mm) flat - 14.61" (371mm) full-tilt
• Max tray load when fitted into the mount: 11 lbs. (5kg)
• Max tray load when wall mounted to the side of mount: 22 lbs. (10kg)
• Max equipment dimensions (mounted inside): H: 15.43" (392mm) x W: 10.67" (271mm) x D: 1.2" (31mm) - 4.11" (104.5mm)
• Max equipment dimensions (wall mounted on the side): H: 15.43" (392mm) x W: 10.67" (271mm) x D: 3.23" (82mm) - 6.12" (155.5mm)
• Storage tray dimensions: H: 16.02" (407mm) W: 10.79" (274mm)
