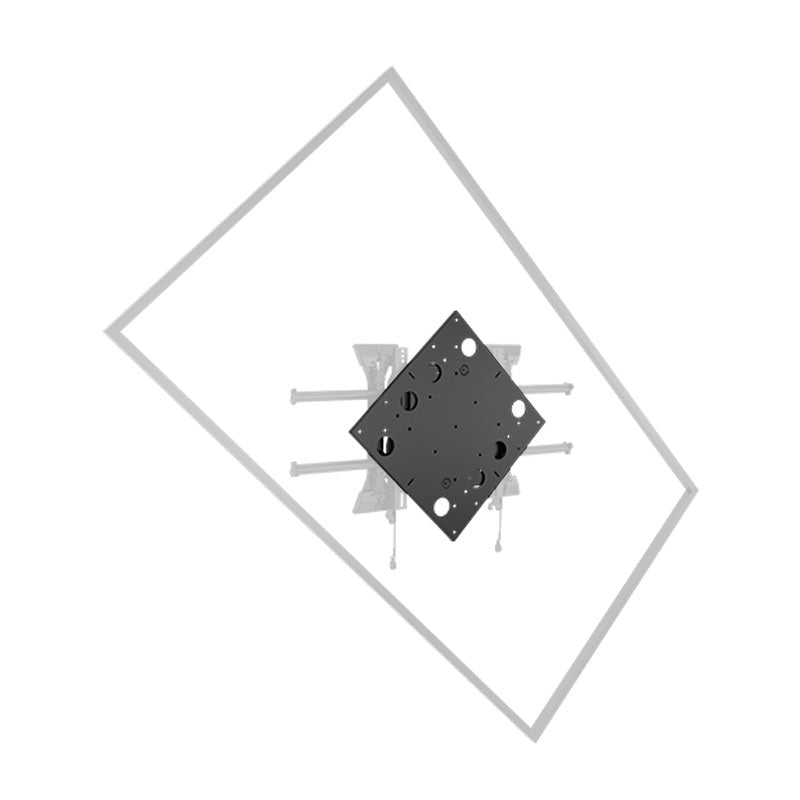

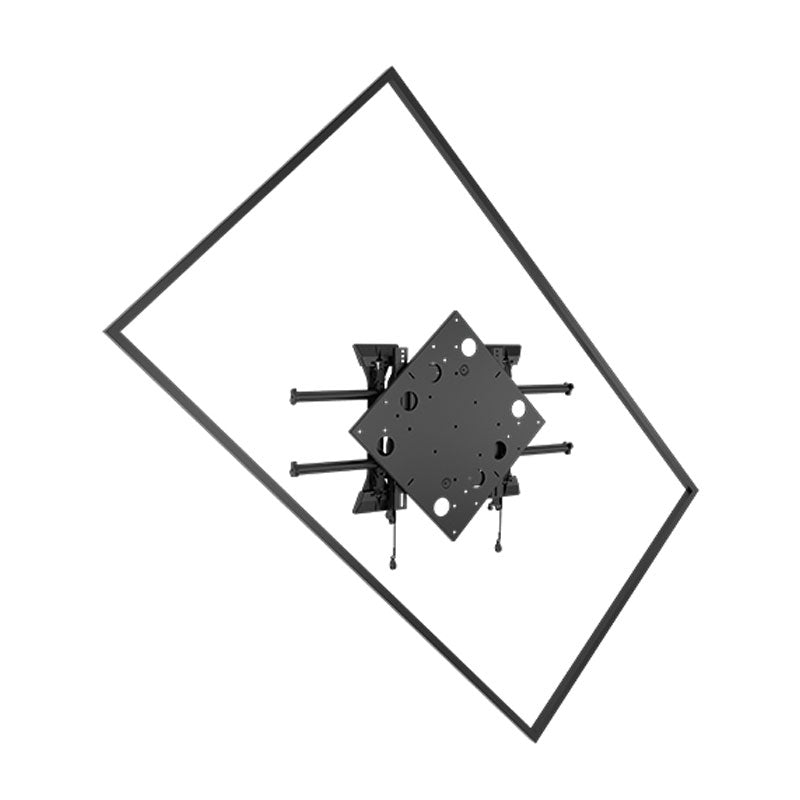

Chief ConnexSys or Fusion Freestyle Rotation Adapter FRA

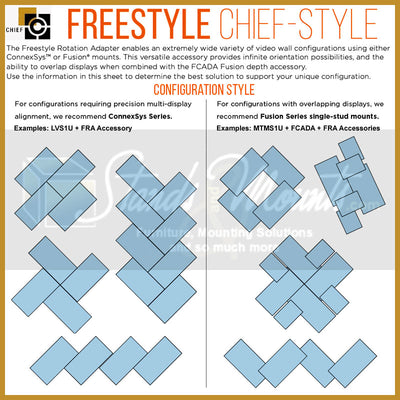

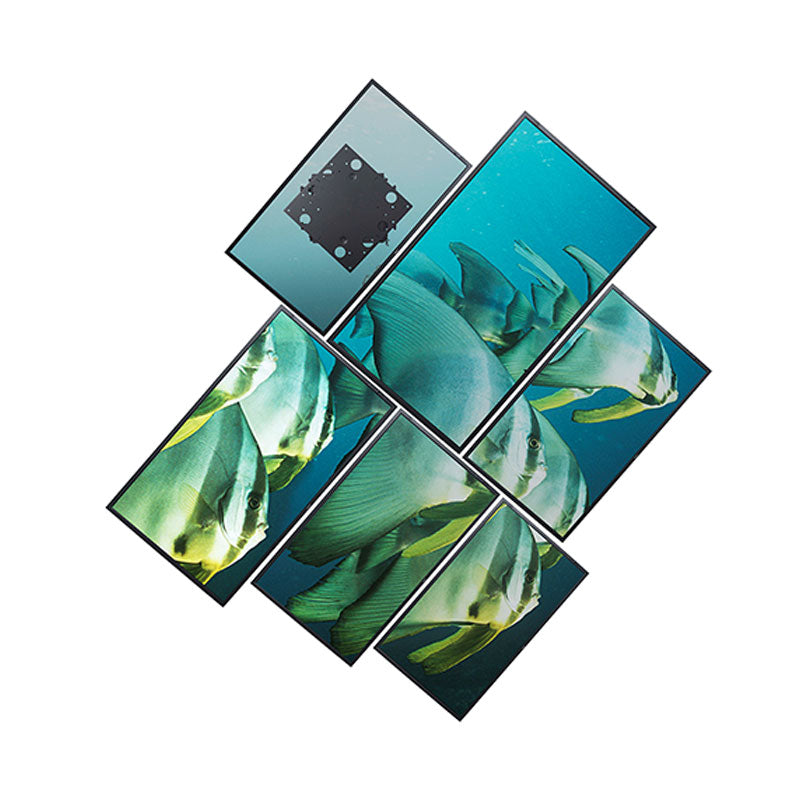

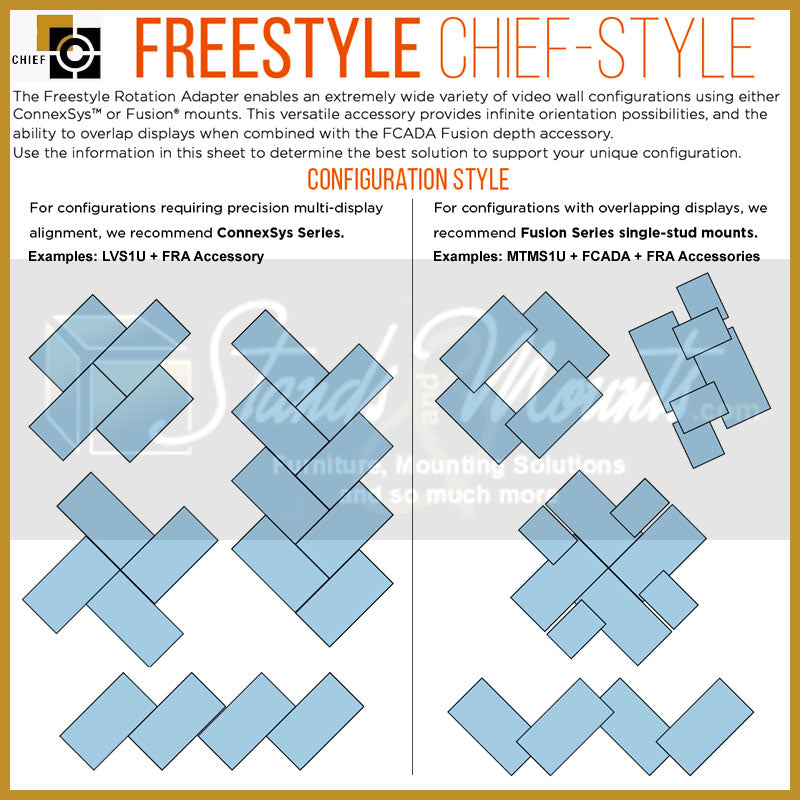

Chief's FRA Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts. It features:

• Works with ConnexSys or FUSION mounts (required - sold separately)

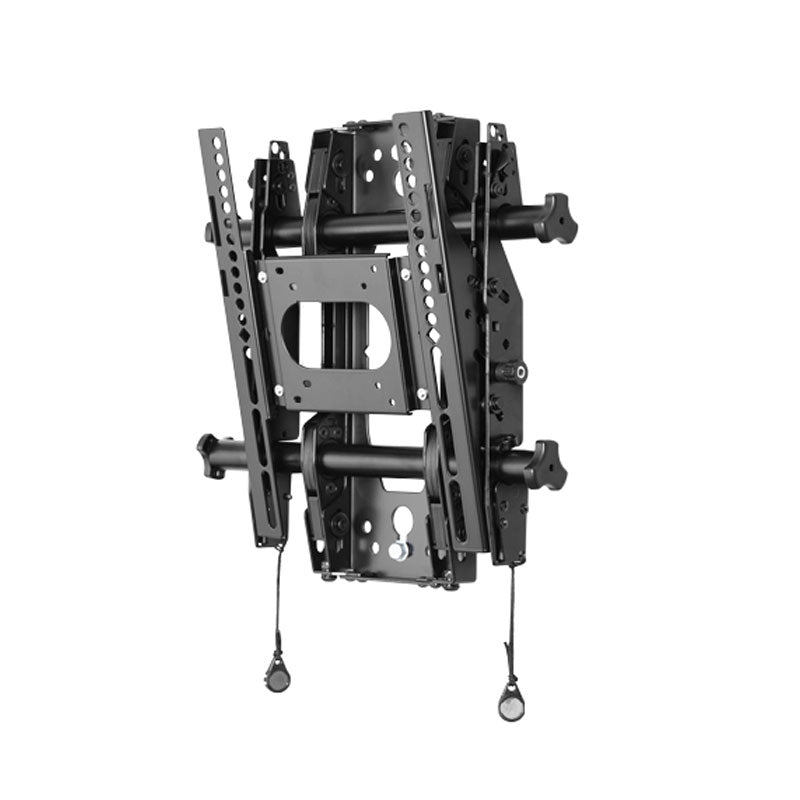

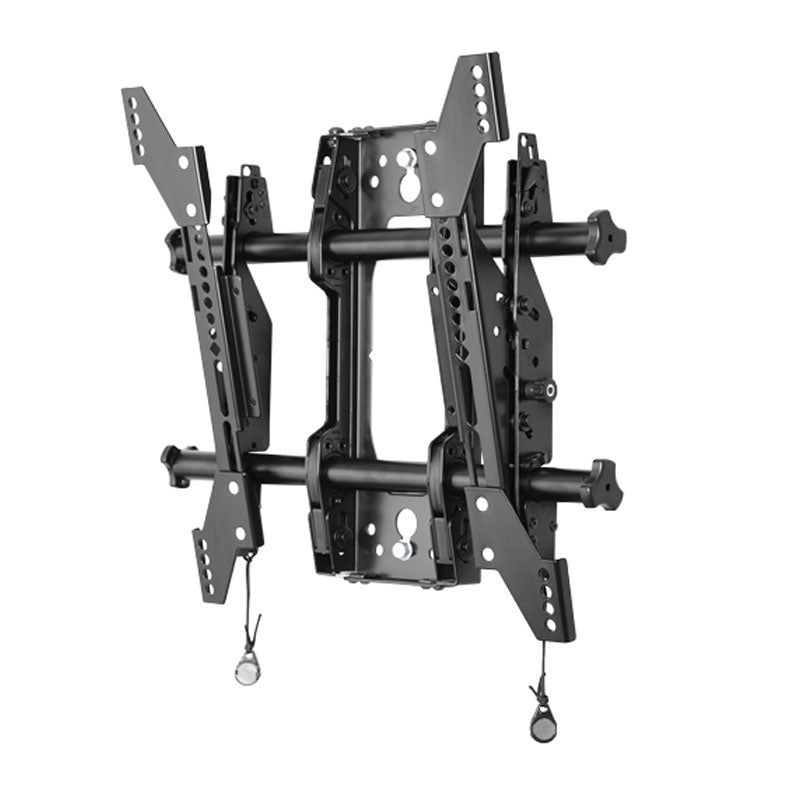

• Fits 40-80" VESA compliant screens with mounting patterns up to 400x400mm and 125lbs (55lbs with MTMS1U or STMS1U)
• Positive lockouts at 15 degree increments
• Provides 90 degrees of rotation for 360 degrees of range

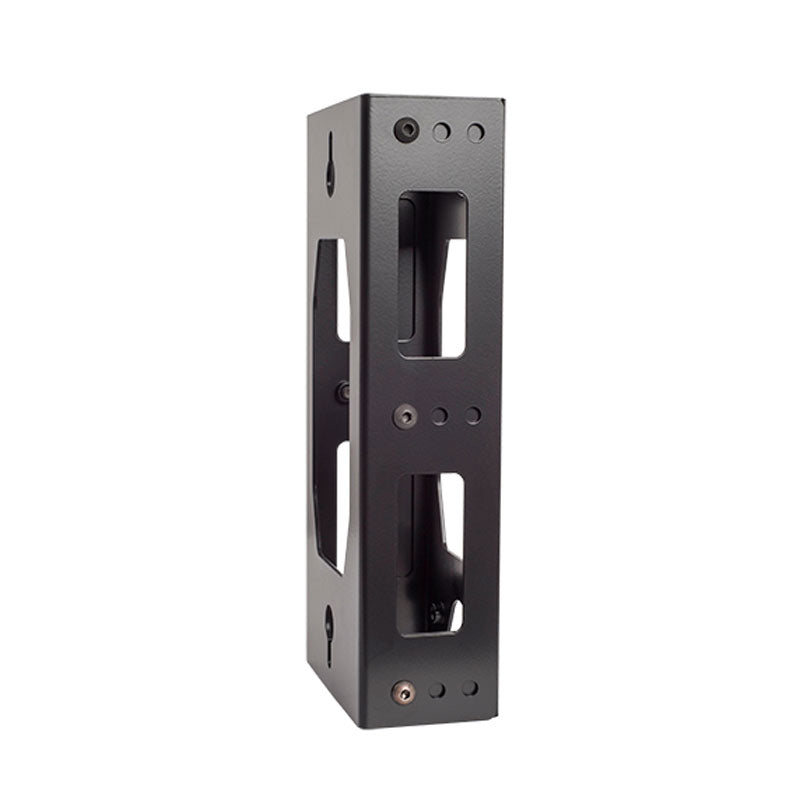

• Overlapping displays (with Fusion FCADA) adds another level of customization and creativity
• Micro-adjustment (with ConnexSys)

• Minimum Depth: 0.84" (21 mm)
• Orientation: Infinite

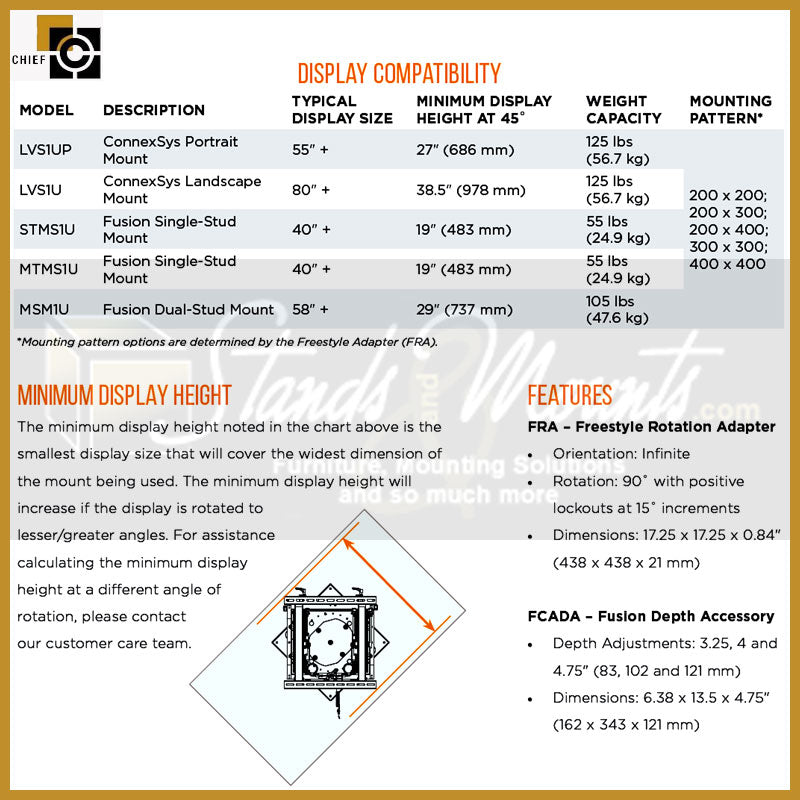

• TV Range: Greater than 40" using MTMS1U or STMS1U (19" minimum display height at 45°), Greater than 55" using ConnexSys (27" minimum display height at 45°)
• Weight Capacity: 55lbs (MTMS1U or STMS1U), 125lbs (ConnexSys)

Note: This adapter can only be used with ConnexSys or FUSION mounts and monitors with 200 x 200, 200 x 300, 200 x 400, 300 x 300 or 400 x 400mm VESA mounting patterns.
