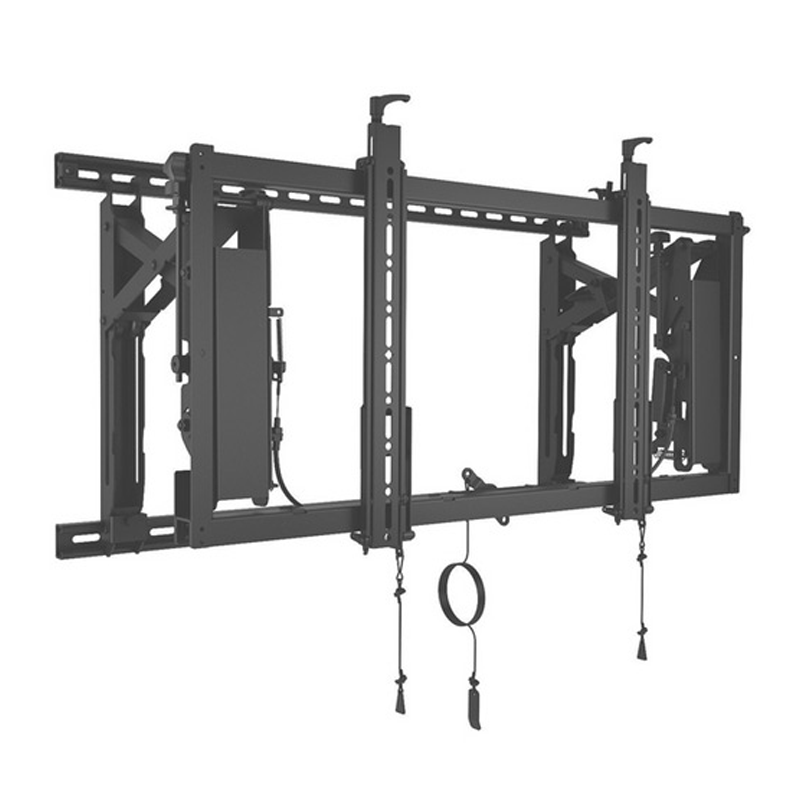

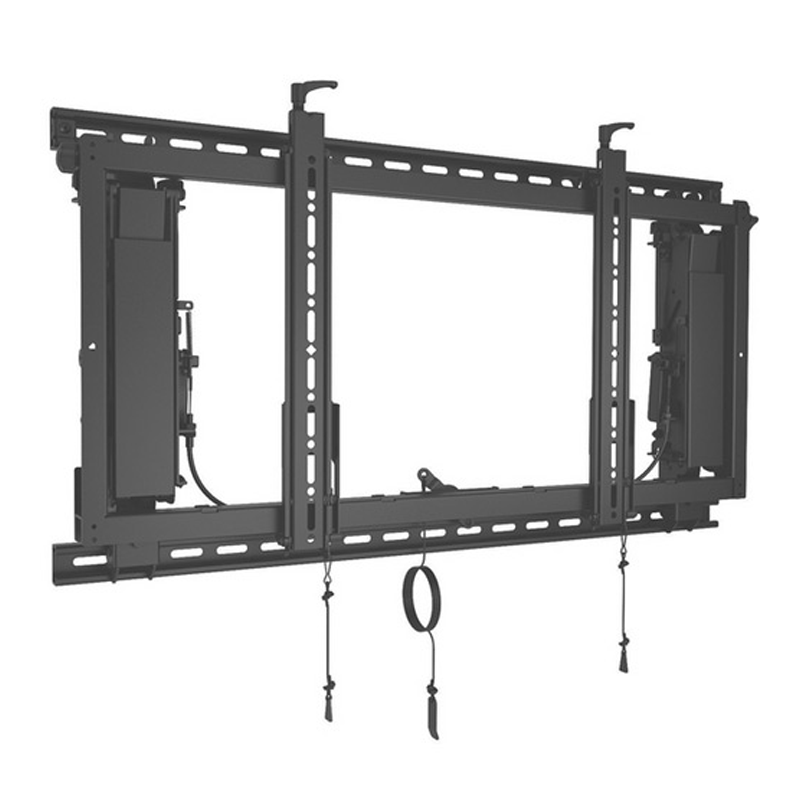

Chief ConnexSys Video Wall Mount (TAA Compliant, with Rails) LVS1U-G

Chief ConnexSys™ Video Wall Landscape Mounting System with Rails ships with rails for each mount and features:

• Fits 42-80" screens with 200x100 to 700x400mm mounting patterns and 150lbs.
• Hang units on a single 1-5/8" strut channel for quick row leveling and no need for horizontal spacers

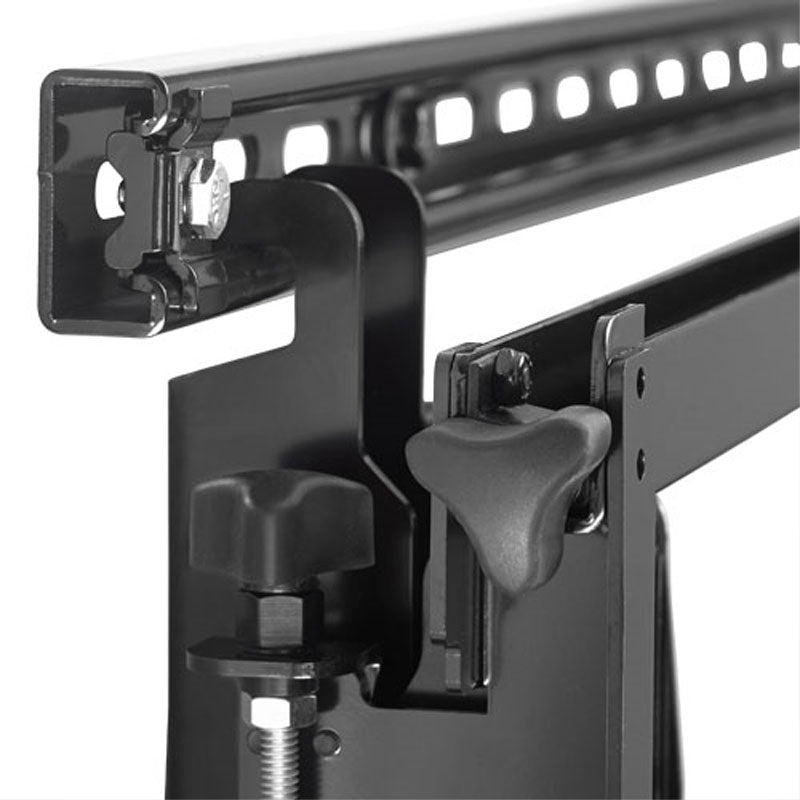

• Tool-free ClickConnect™ latching secures displays
• PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
• Tilt adjustment at single pivot point, protects displays from twisting

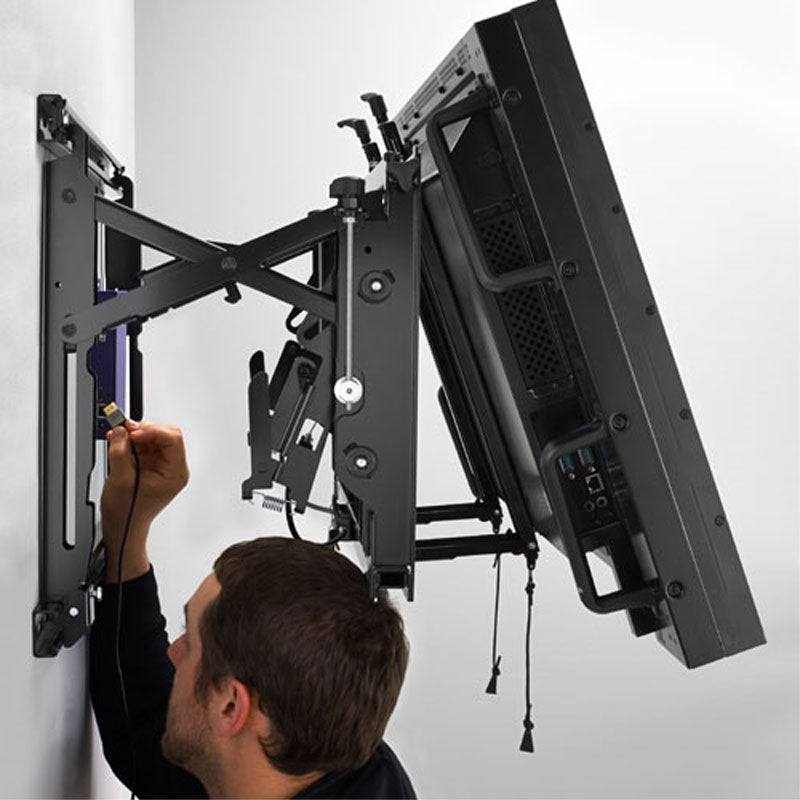

• Can be extended 13.4" for service
• Kickstand provides 20 degrees of bottom tilt access

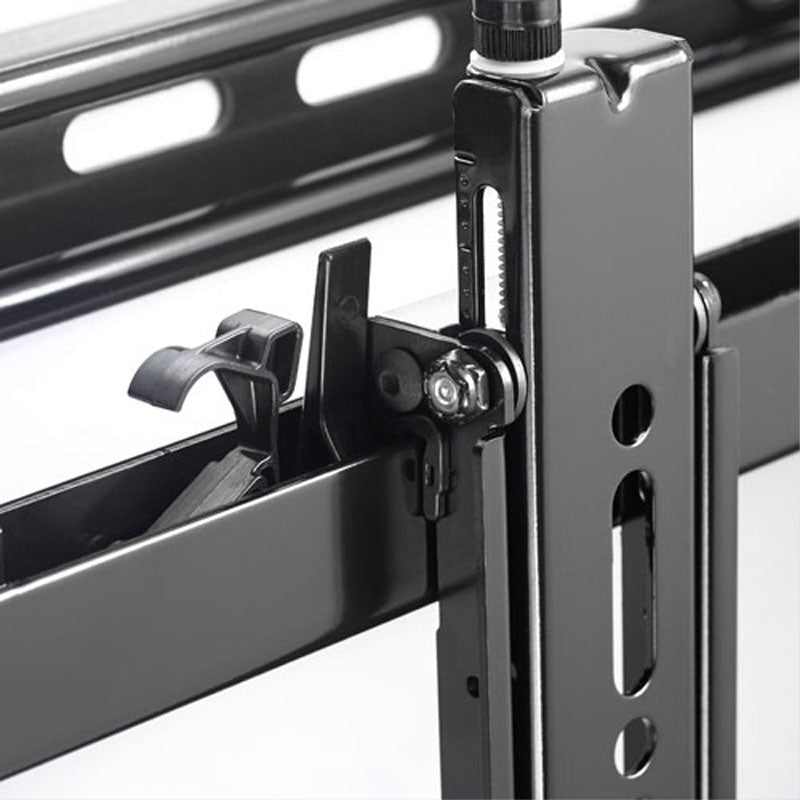

• Manual Height Adjustment: ± 1"
• Maximum Extension: 13.4" (34.0 cm)
• Minimum Depth: 4"
• Tilt: + 4.0°, -2.5°

• Weight Capacity: 150 lbs (68 kg)
• Certifications: TÜV Certified, UL Listed
• TAA-Compliant to meet the needs of U.S. Government projects
