Chief FUSION 2x1 Additional Row (LBM and LVM) FCA2X1U

Chief's FUSION® Series LVM accessory for LVM2X2U video wall cart or LBM2X2U stand. It features:

• 2 x 1 screen arrangement for 42 - 60" screens (up to 60" when FCAX08, FCAx14 or FCAx20 are used)

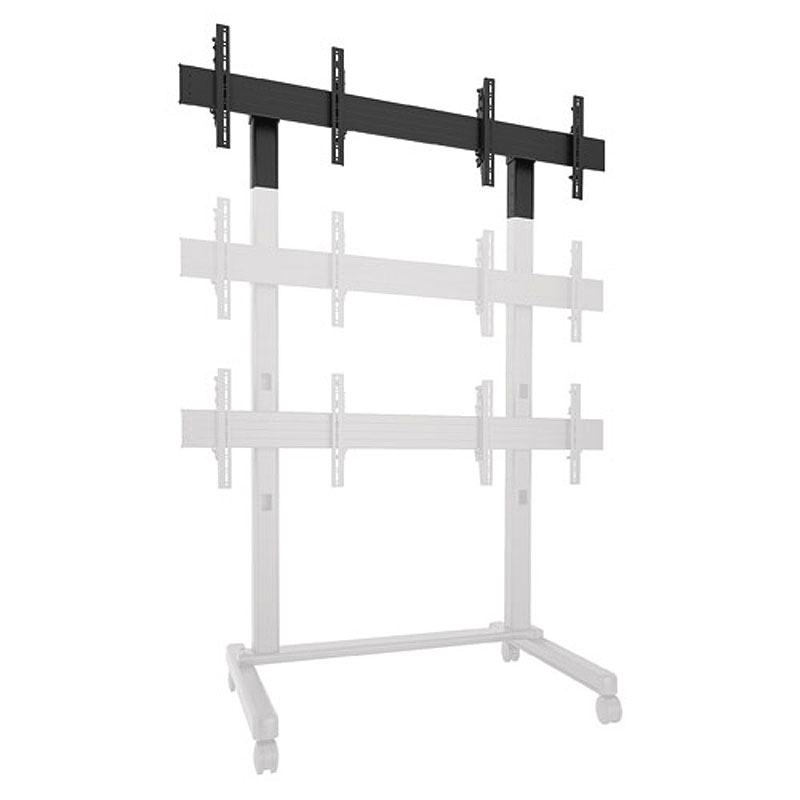

• Adds an extra row to the LVM2X2U/LBM2X2U to make a 2 x 3 video wall
• Easily assembles with 6 screws per column and included Allen wrench
• Easily align displays with independent height, plumb and lateral shift adjustment
• Integrated cable management for a clean installation
• Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
• Weight Capacity: 100 lbs (45.4 kg) per screen


Recommended for:

• 42 to 60" flat panels with maximum vertical mounting patterns between 3.94" (100mm) and 15.75" (400mm) and 100 lbs. Screens up to 65" is possible when FCAX08, FCAX14 or FCAX20 are used.
