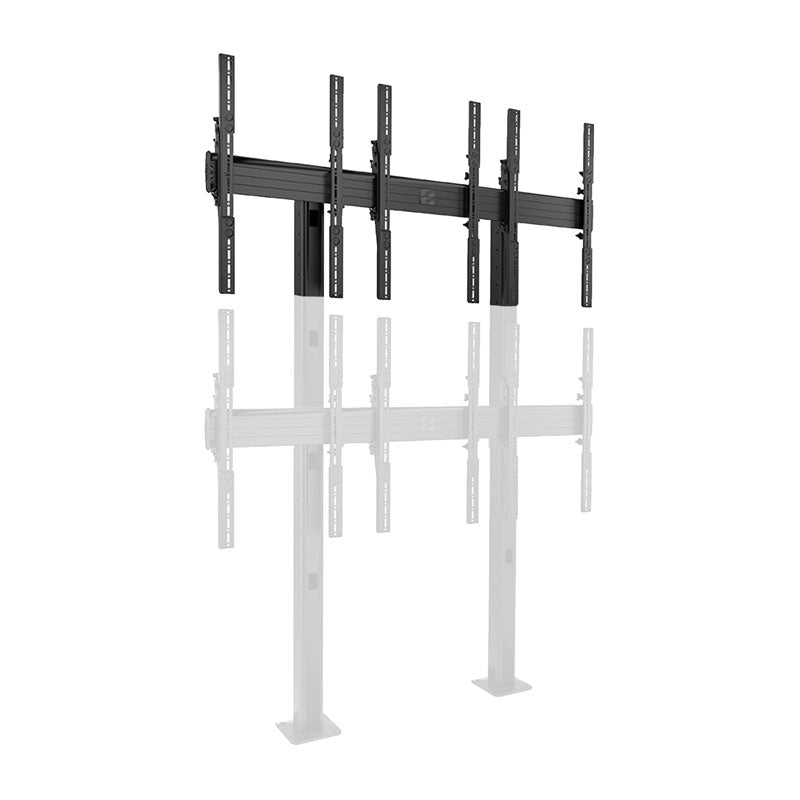

Chief Fusion 3x1 Additional Row (LBM or LVM, Portrait) FCA3X1UP

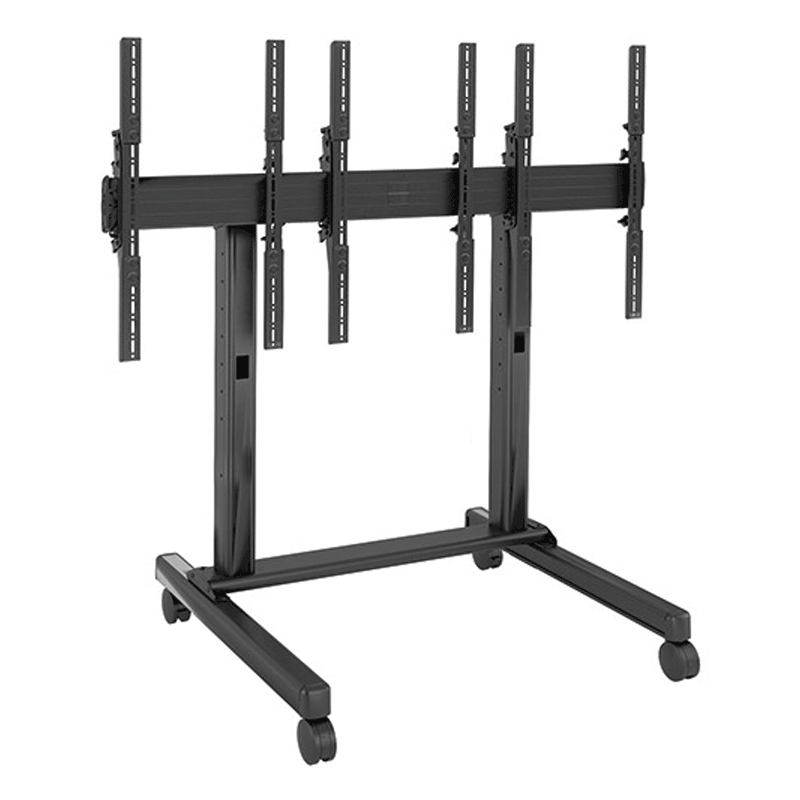

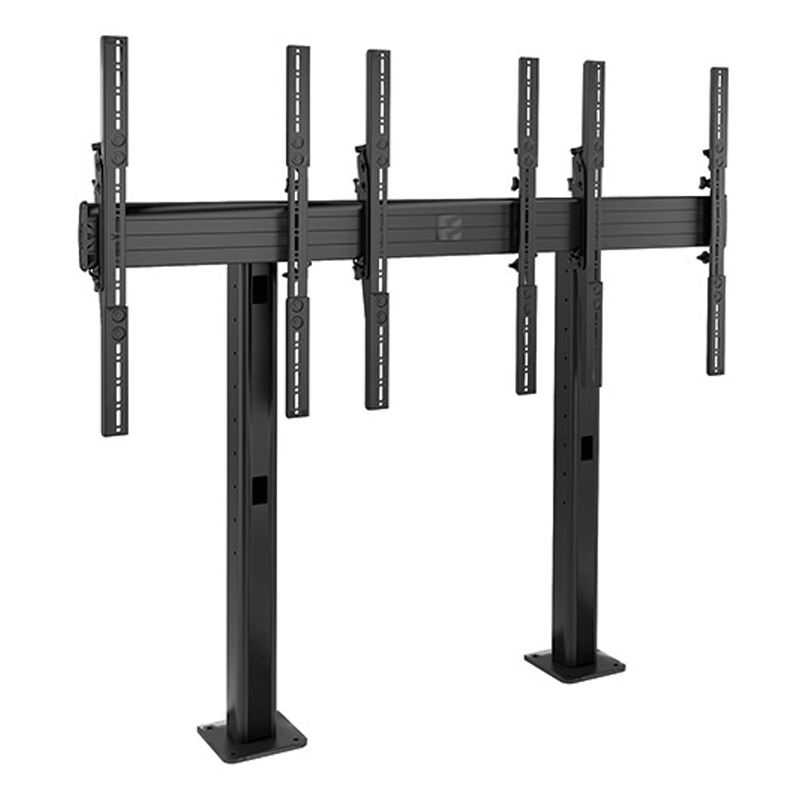

Chief's FUSION® Series accessory for LVM3X1UP video wall cart or LBM3X1UP. It features:

• 3 x 1 screen arrangement for 42 - 50" screens (up to 60" when FCAX08, FCAx14 or FCAx20 are used)
• Adds an extra row to the LVM3X1UP/LBM3X1UP to make a 3 x 2 video wall
• Easily assembles with 6 screws per column and included Allen wrench
• Easily align displays with independent height, plumb and lateral shift adjustment
• Integrated cable management for a clean installation
• Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
• Weight Capacity: 100 lbs (45.4 kg) per screen (125 lbs when used with LBM3X1UP)


Recommended for:

• 42 to 50" flat panels with maximum vertical mounting patterns between 3.94" (100mm) and 31.50" (800mm) and 100 lbs. (125 lbs when used with LBM3X1UP). Screens up to 60" is possible when FCAX08, FCAX14 or FCAX20 are used.
