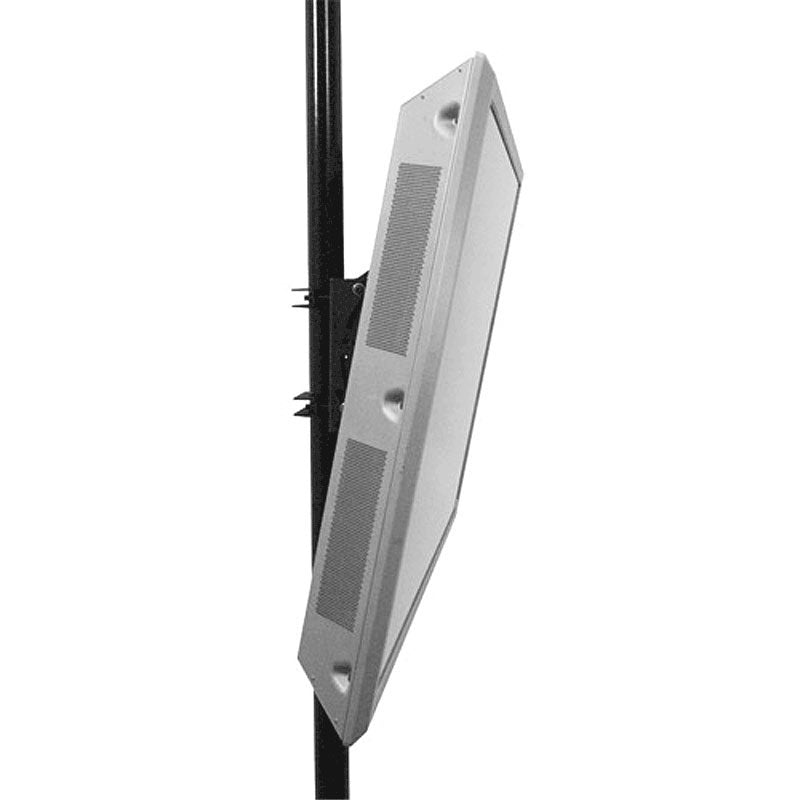

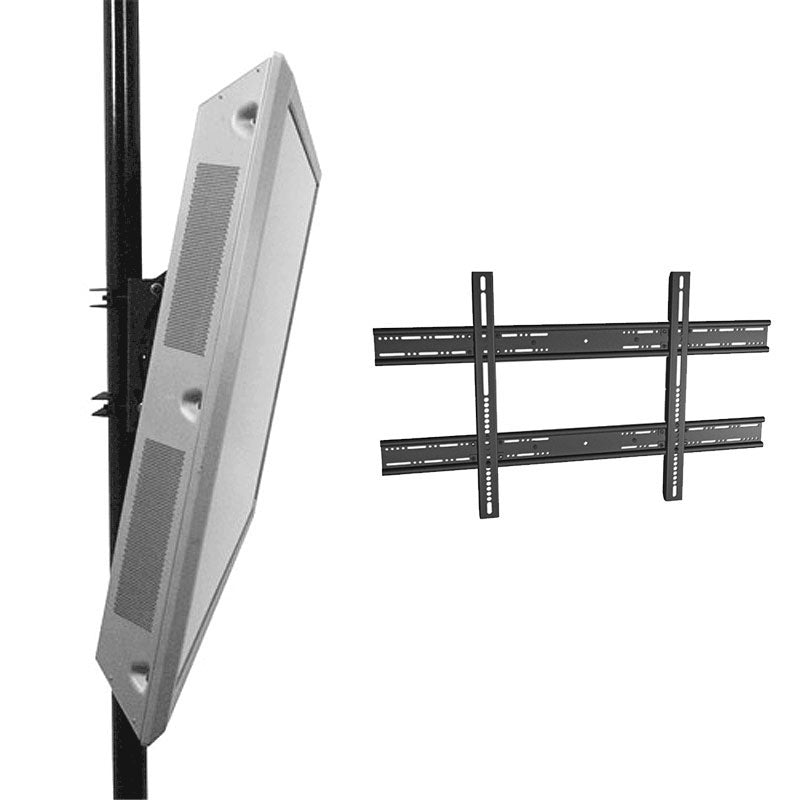

Chief's Large Tilt Pole Mount features:

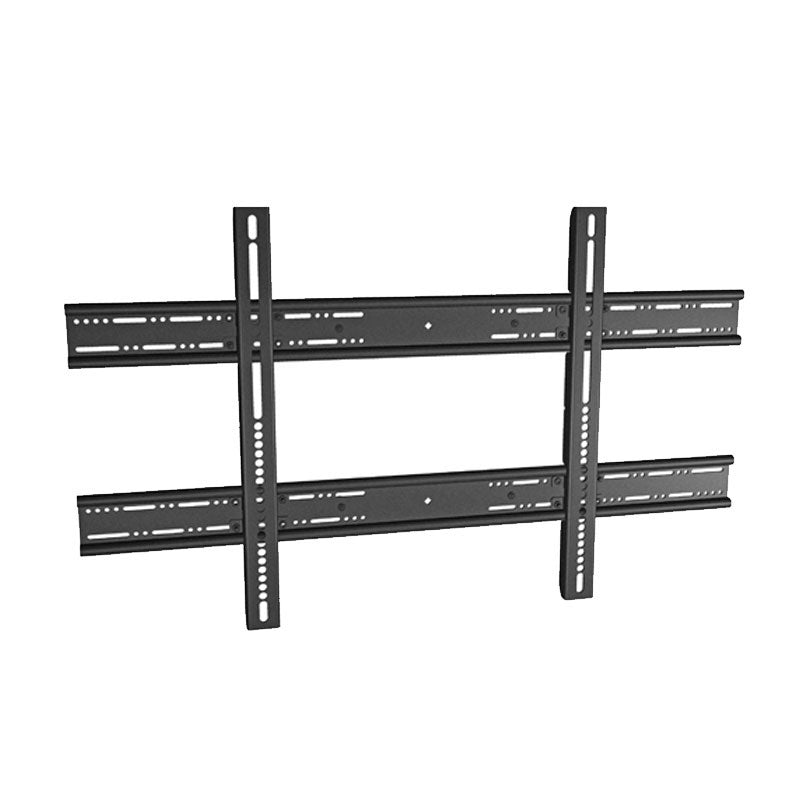

Fits 42-71+" flat screens weighing up to 150 lbs with 200x200mm to 862x517mm mounting patterns
Install on vertical or horizontal truss
Install mount horizontally and use pitch adjustment for side-to-side pivot
Lockable +/- 15 degree up or down pitch adjustment
Pre-set pitch locking points at 0, 5, 10 and 15 degrees to quickly and easily align multiple displays
Vertical or horizontal installation for optional portrait or landscape orientation
Chief's exclusive locking "Q-latch" mounting system for easy installation and quick release
Integrated security allows display to be locked to mount by adding a padlock
Two mounting methods, using either a clamp or bolts (Hardware not included)
PAC400 accessory can be used to rotate without removing the screen (sold separately)
TAA-Compliant to meet the needs of U.S. Government projects
Weight Capacity: 150 lbs (68.kg)

Help Files

No PDF help files available for this product

Important Notice

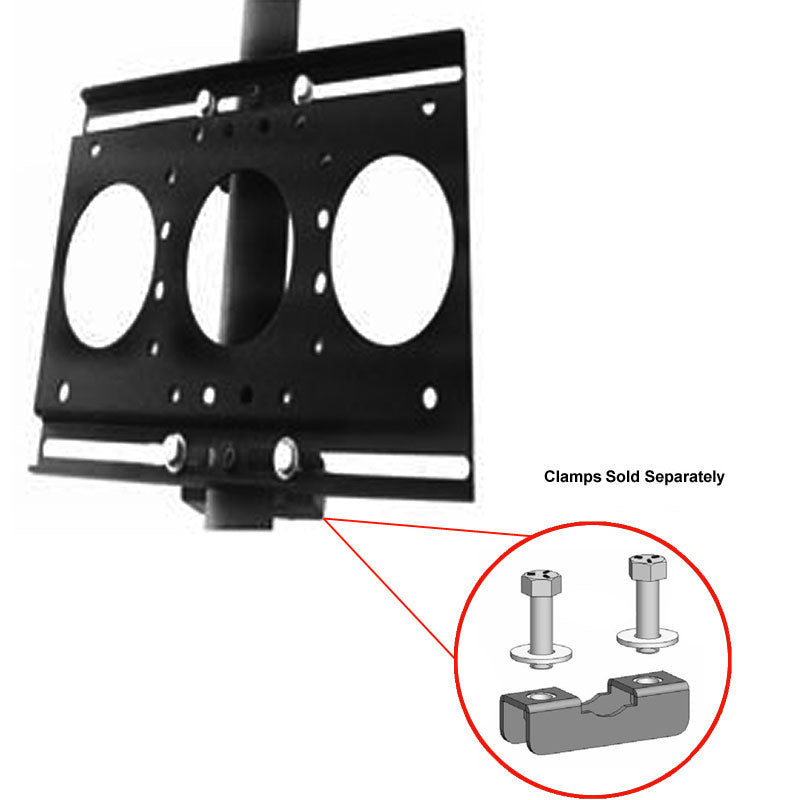

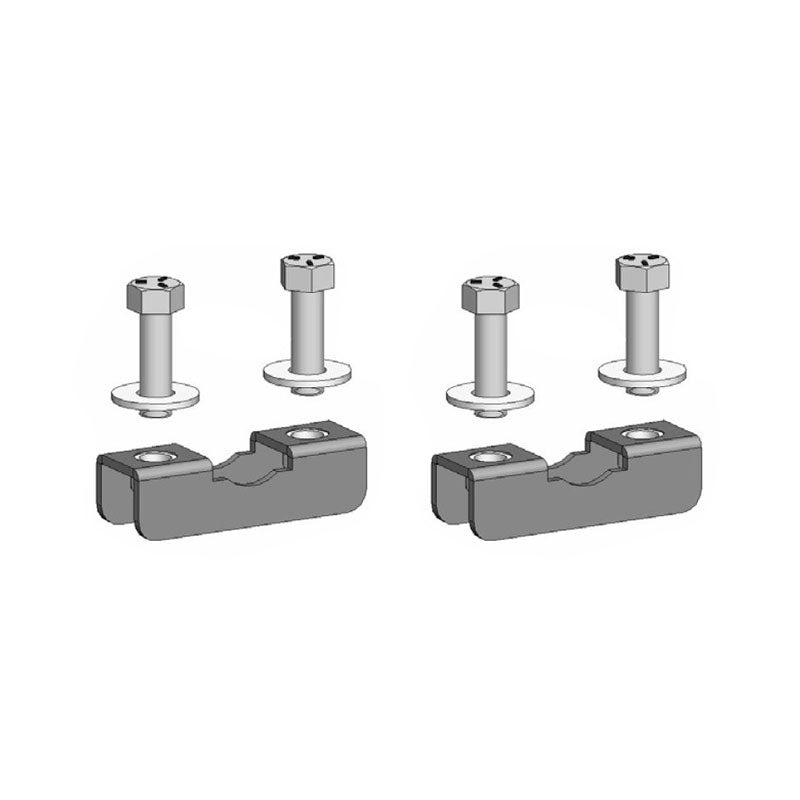

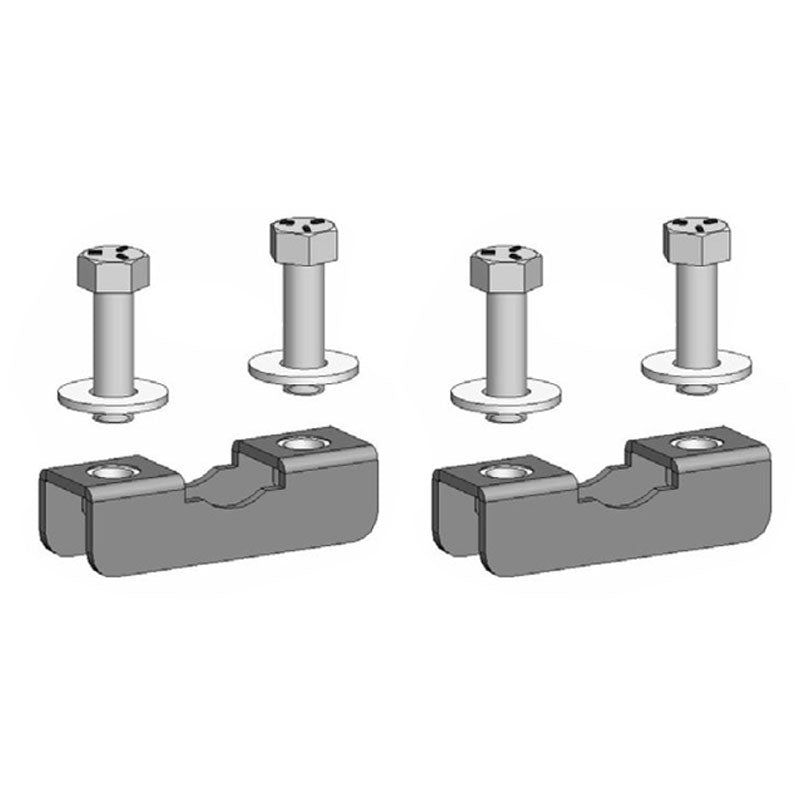

Please Note: For complete installation, this mount requires TPK series clamps for different size poles/truss work (sold separately).

Product Details and Specifications

Height:

16.20 in.

Width:

17.10 in.

Depth:

03.40 in.

Weight Capacity:

150 lbs. (68 kg),

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in.,

Mount Placement:

Pole or Truss,

Model Number:

TPMUB,

Ship Weight:

27.00 lbs

Orientation:

Landscape, Portrait,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm,
