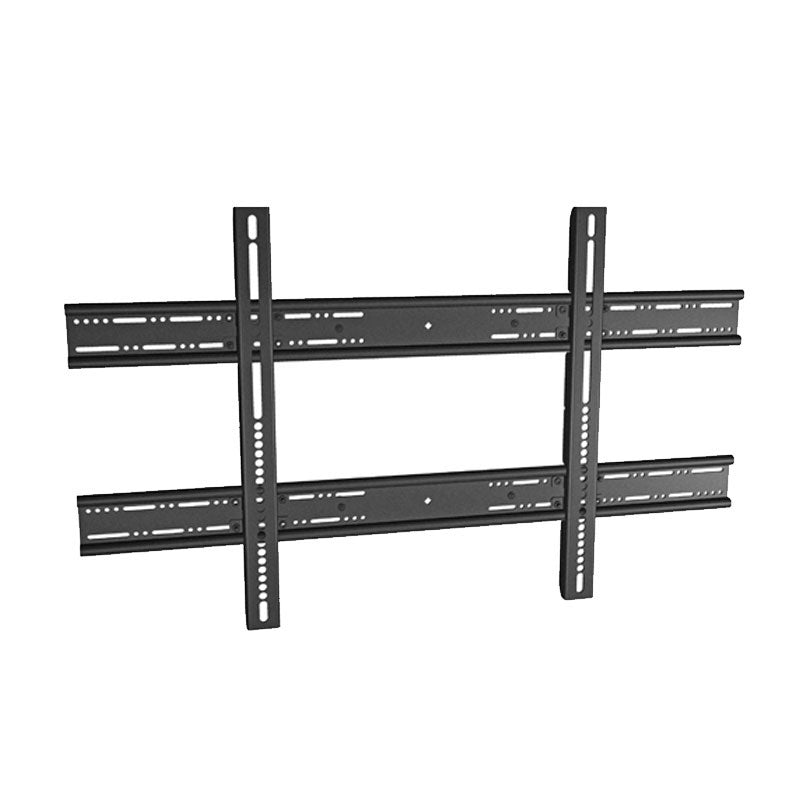

Chief Large TV Truss Mount (Fixed, Universal) TPSU

Name: Chief Large TV Truss Mount (Fixed, Universal) TPSU
Brand: CHIEF
SKU: CHF-TPSU
Price: 385.00 USD
Availability: InStock

Chief Large TV Fixed Truss Mount (Fixed, Universal) TPSU

Chief Large TV Truss Mount (Fixed, Universal) TPSU

Mfg Part # TPSU

SKU # CHF-TPSU

In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.

$385.00 $486.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Email Us

Chief's Large Fixed Truss Mount features:

Fits 42-71+" flat screens weighing up to 150 lbs with 200x200mm to 862x517mm mounting patterns

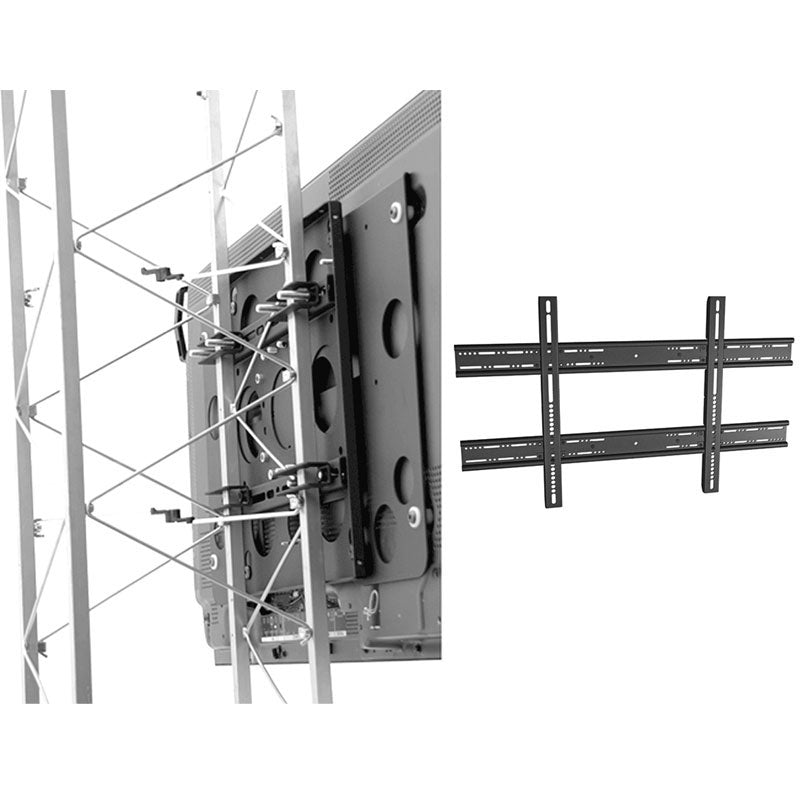

Spanning for up to 14" (OD) truss systems
Install mount horizontally and use pitch adjustment for side-to-side pivot
Vertical or horizontal installation for optional portrait or landscape orientation
Chief's exclusive locking "Q-latch" mounting system for easy installation and quick release
Integrated security allows display to be locked to mount by adding a padlock
Two mounting methods, using either a clamp or bolts (Hardware not included)
PAC400 accessory can be used to rotate without removing the screen (sold separately)
TAA-Compliant to meet the needs of U.S. Government projects
Weight Capacity: 150 lbs (68.kg)

Help Files

No PDF help files available for this product

Important Notice

Please Note: For complete installation, this mount requires TPK series clamps for different size poles/truss work (sold separately).

Product Details and Specifications

Height:

16.20 in.

Width:

17.10 in.

Depth:

01.10 in.

Weight Capacity:

150 lbs. (68 kg),

Color(s):

Black,

Range of Screens Supported:

39 to 42 in., 43 to 50 in., 51 to 60 in., 61 to 70 in., 71 to 80 in.,

Mount Placement:

Pole or Truss,

Model Number:

TPSU,

Ship Weight:

27.00 lbs

Orientation:

Landscape, Portrait,

TV or Monitor Capacity:

1 Screen,

VESA Mount Compatible:

200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 700 x 400 mm, 700 x 500 mm, 800 x 400 mm, 800 x 500 mm,
