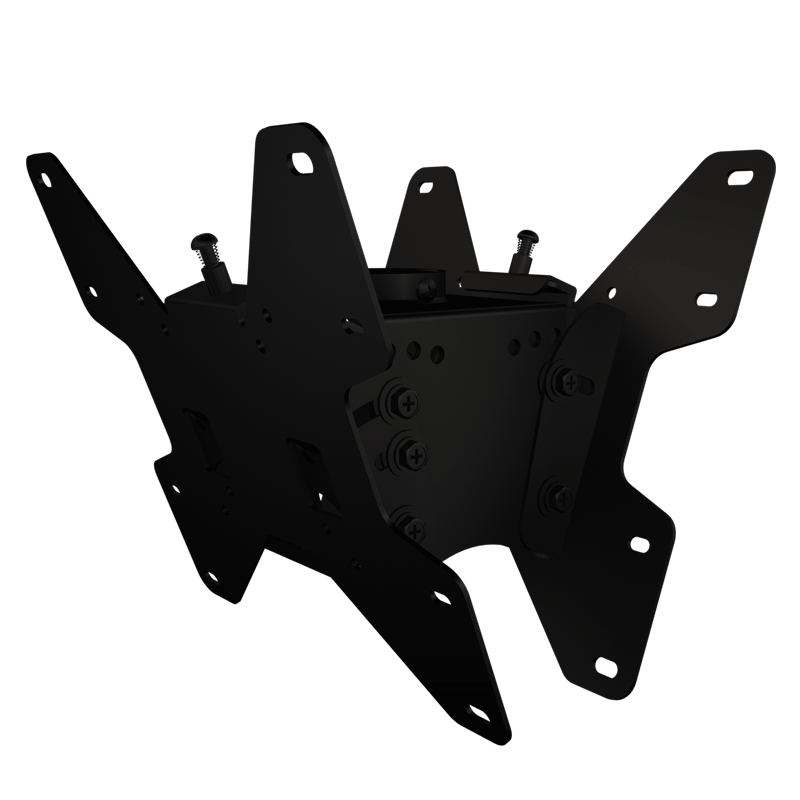

  • Crimson Dual VESA Ceiling Mount Lower Assembly for 13-40 inch Screens (Black) C37D

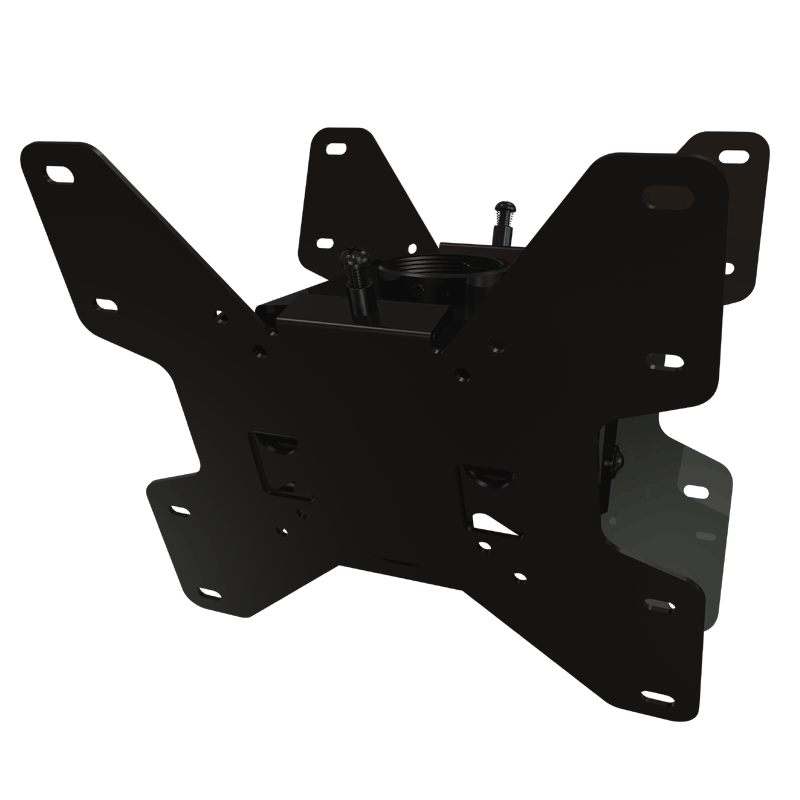

  • Crimson Medium TV Ceiling Mount Lower Assembly C37D, multi-arm ceiling mounting bracket in a front three-quarter view

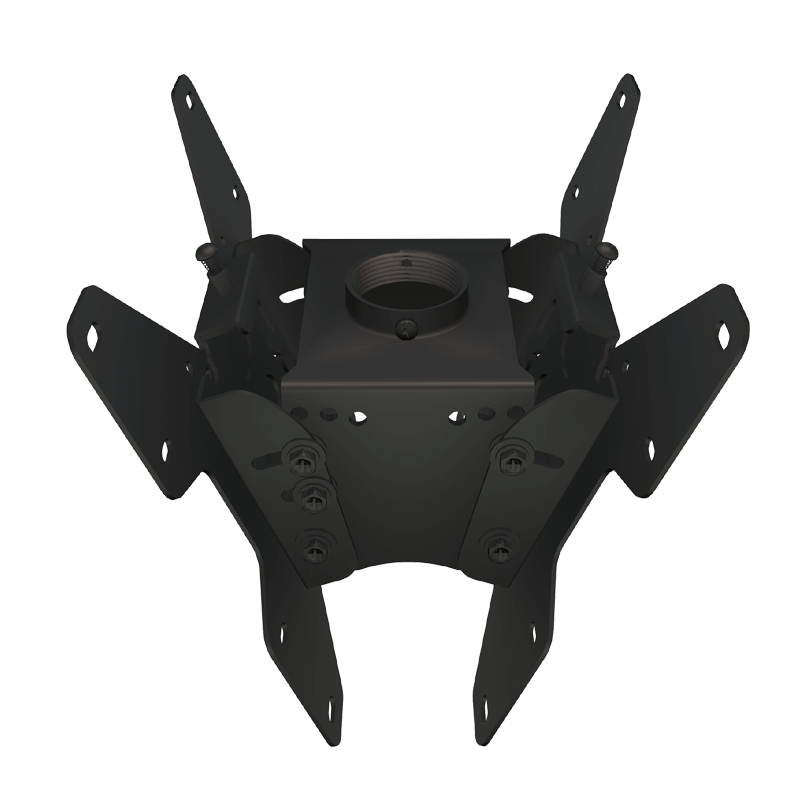

  • Crimson Medium TV Ceiling Mount Lower Assembly C37D, multi-arm ceiling mounting bracket in an underside view

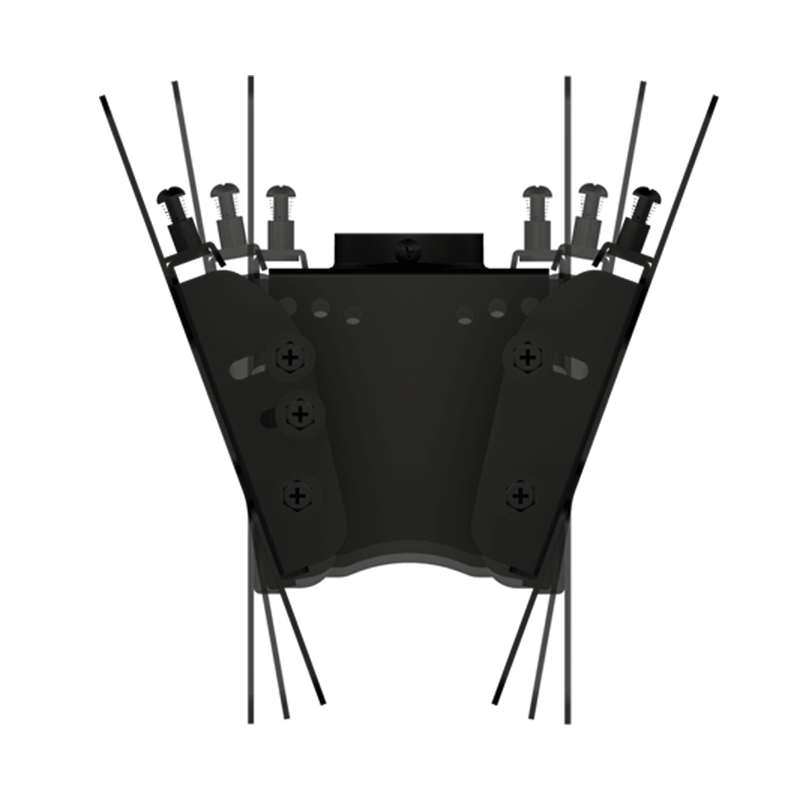

  • Crimson Medium TV Ceiling Mount Lower Assembly C37D, multi-arm mounting bracket adjustment hardware

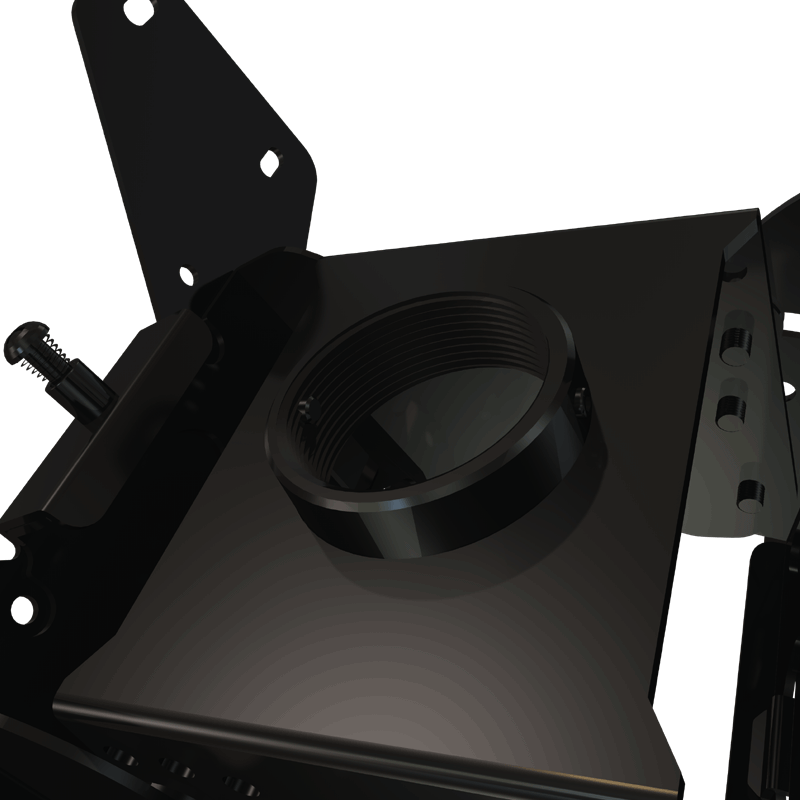

  • Crimson Medium TV Ceiling Mount Lower Assembly C37D, threaded mounting interface in close-up

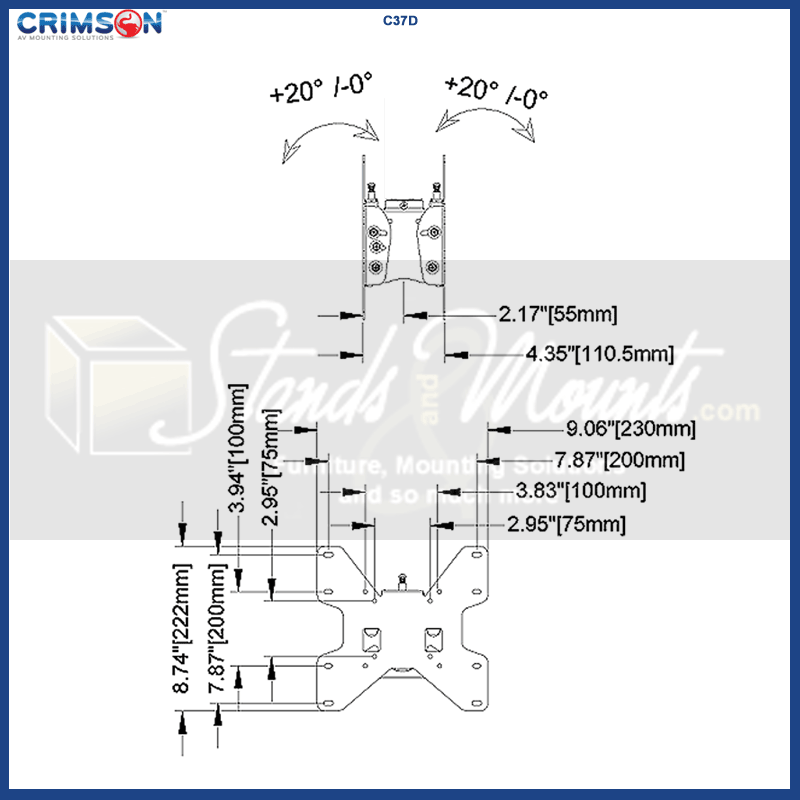

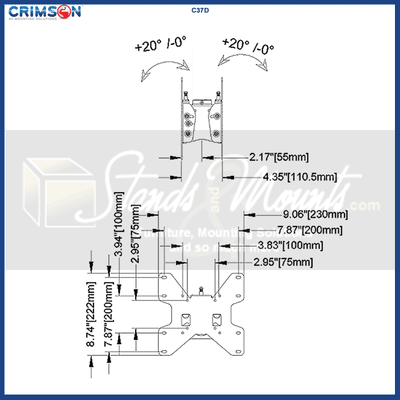

  • Crimson Medium TV Ceiling Mount Lower Assembly C37D, multi-arm mounting bracket technical dimensions diagram
  • Crimson Standoff Spacer HSO635, shipping transit-time map
Crimson Medium TV Ceiling Mount Lower Assembly (B2B, VESA 200) C37D

Crimson

Save 15% on this product with code SAVE15

Mfg Part # C37D
SKU # CRIMSON-C37D
Crimson AV badge showing StandsandMounts.com as authorized partner
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$136.00 $170.00

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

Attaches to standard 1.5" threaded extension columns. Can be used as retrofit on existing columns or combine with Crimson E-series fixed extensions or EA-series adjustable extensions and CA ceiling adapters to complete the solution. Continuous tilt of 20° forward with 360° rotation. Makes a secure screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the VESA adapter in place. Compatible with all 1.5" NPT threaded pipe. It features:

  • Works with two back-to-back 13-46+" screens with maximum 200x200mm VESA mounting patterns and 80lbs. each
  • VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
  • Fast and easy installation
  • Up to 20° of continuous tilt and 360° rotation (at time of installation)
  • Pre-sorted hardware pack for easy installation
  • Compatible with any 1.5" NPT threaded pipe

**Click on the last image above for detailed dimensions.

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

08.74 in.

Width:

09.06 in.

Depth:

04.35 in.

Weight:

6.2lb (2.8kg),

Weight Capacity:

80lb (36kg) each, 160lb (73kg) total,

Color(s):

Black,

Mount Placement:

Ceiling,

Model Number:

C37D,

Rotate:

360 degrees,

Tilt:

+20/-0 Degrees,

Orientation:

Landscape, Portrait,

VESA Mount Compatible:

75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm,

Adjustability of Mount:

Tilt Up Down,

Special Features of Mounts:

Multiscreen,

Use of Mount:

Monitor or TV,
