B-Tech System X Rail Mounting Bracket (Ultra-Slim) BT8390-WFK8/B

Mfg Part # BT8390-WFK8/B
SKU # BTECH-BT8390-WFK8/B
B-Tech Mounts Certified Experts Authorized Partner logo
Product image with a clear background
In Stock: Delivered Free in 3-9 Days. Expedited Shipping Available.
$36.00 $42.50

View Current Discounts and Promotions

Ask The Experts

800-807-1477

Ask An Expert

Our AV Stands and Mounts Experts are ready to help!

StandsandMounts.com is staffed with AV display solutions experts. Our sales team has gone through extensive training to become certified pros. Their in-depth understanding the mounting products and their extensive knowledge of the high-quality brands that we offer will help you quickly find the perfect mounting solution. The will confirm fit or configure for you. They are ready to help whether you need a wall mount for your living room, a back-to-back monitor stand for display on a trade show floor or a multiple monitor video wall mount for a commercial installation. No job is too large or too small. When you have any questions at all, we we're here to help!

Give us a call at 1-800-807-1477 or fill out the form below.

We'll get back to you with an answer right away.

Email Us

The B-Tech System X Rail Mounting Bracket BT8390-WFK8/B features:

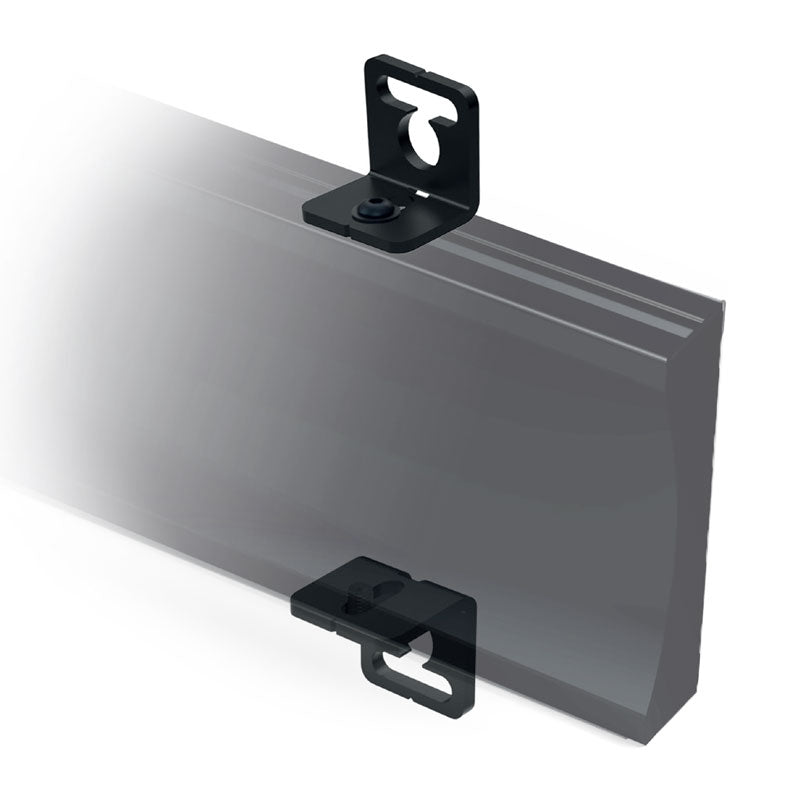

  • Ultra-Slim design mounts BT8390 Rails flush against a wall

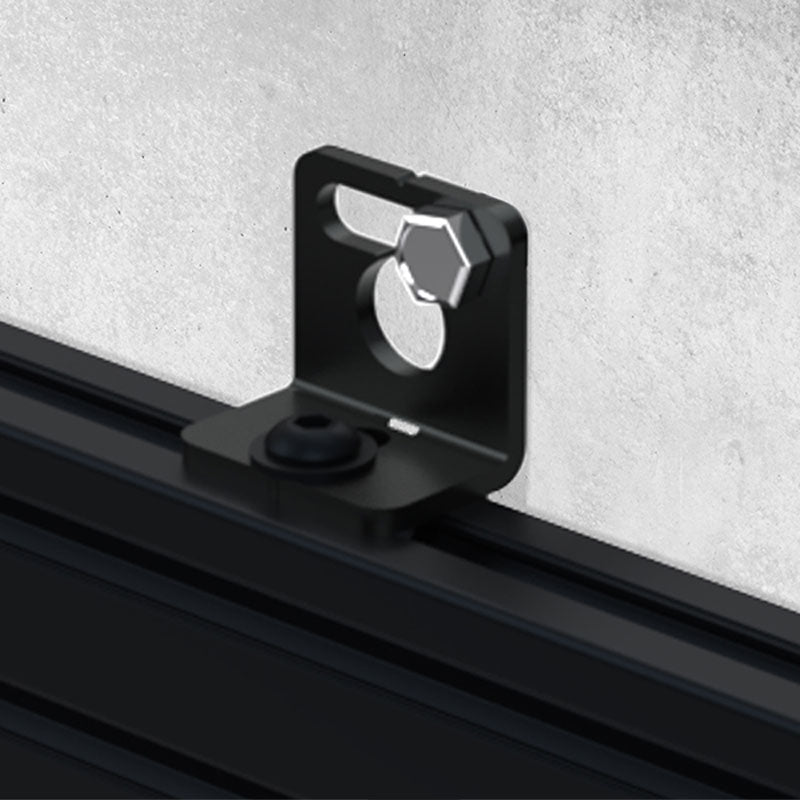

  • Keyhole mounting for easy installation

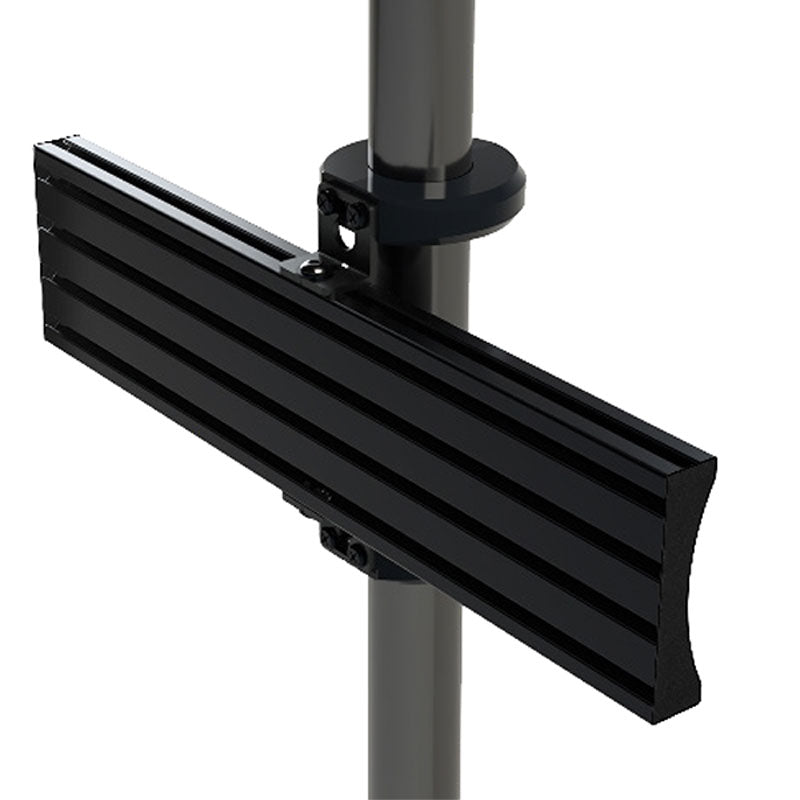

  • Attaches to B-Tech collars (BT7051 / BT7841) for mounting to poles
  • Vertical Center Guides make positioning easy
  • Can be used to reverse mount BT8390 rails
  • Can also be fitted directly to BT8380 and BT8381 columns
  • All mounting hardware included

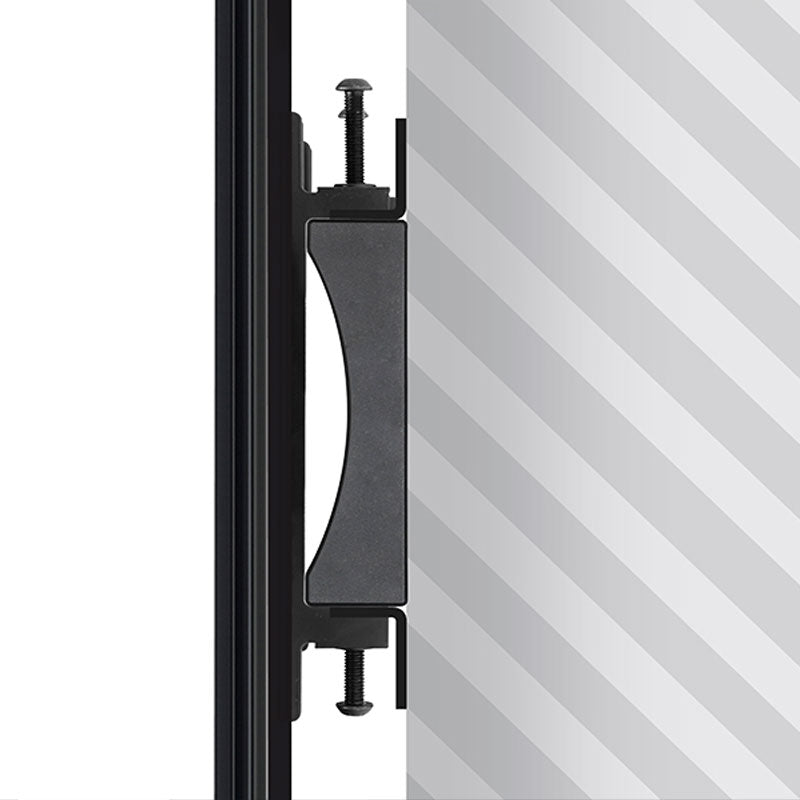

  • Wall to rear of rail distance: 1.5" (37mm) (+/-0.4")
  • Max load (per pair) - 176lbs (80kg)
  • Quantity of brackets required per rail length (landscape installs):
    • Rail Length - Qty
    • 0 - 59.06" (0 - 1500mm): 2pcs
    • 59.09 - 118.11" (1501 - 3000mm): 3pcs
    • 118.15 - 177.17" (3001 - 4500mm): 4pcs
    • 177.20 - 236.22" (4501 - 6000mm): 5pcs
    • 236.26 - 295.28" (6001 - 7500mm): 6pcs

Help Files

No PDF help files available for this product

Product Details and Specifications

Height:

7.95 in.

Width:

1.65 in.

Depth:

1.17 in.

Weight Capacity:

176lbs (80kg),

Color(s):

Black,

Model Number:

BT8390-WFK8/B,
